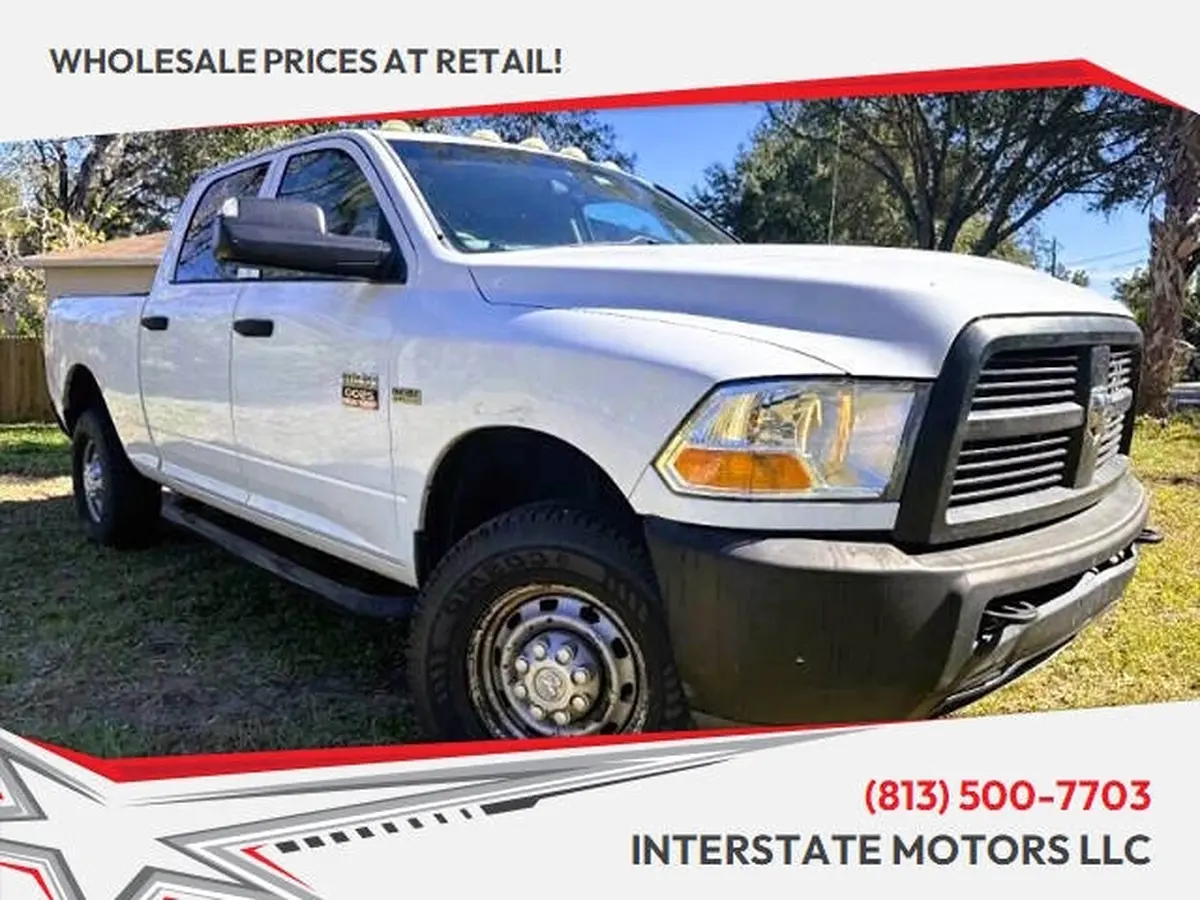

2012 Ram 2500 ST Crew Cab

Engine

HEMI 5.7L V8 383hp 400ft. lbs.

• Bore: 3.92
• Compression: 9.6
• Displacement: 5.7
• Oil Capacity: 6.6
• Stroke: 3.58
• Cylinders: 8
• Max HP: 383
• Max HP At: 5600
• Max Torque: 400
• Max Torque At: 4000
• Redline: 5800
• Valves: 16
• Aspiration Code: N/A
• Aspiration Description: Naturally Aspirated
• Block Type Code: V
• Block Type Description: Two Banks Of Cylinders, Opposing
• Brand: HEMI
• Cam Type: OHV
• Fuel Induction: SMPI
• Fuel Quality: 87
• Fuel Type Code: G
• Fuel Type Description: Gasoline
• Name: HEMI 5.7L V8 383Hp 400Ft. Lbs.
• Valve Timing: VVT

Standard Specifications

Engine

• Bore: 3.92 inch
• Compression: 9.6
• Displacement: 5.7 Liter
• Oil Capacity: 6.6 qt
• Stroke: 3.58 inch
• Cylinders: 8
• Max HP: 383 hp
• Max HP At: 5600 rpm
• Max Torque: 400 ft-lb
• Max Torque At: 4000 rpm
• Redline: 5800 rpm
• Valves: 16
• Aspiration Code: N/A
• Aspiration Description: Naturally Aspirated
• Block Type Code: V
• Block Type Description: Two Banks Of Cylinders, Opposing
• Brand: HEMI
• Cam Type: OHV
• Fuel Induction: SMPI
• Fuel Quality: 87
• Fuel Type Code: G
• Fuel Type Description: Gasoline
• Name: HEMI 5.7L V8 383Hp 400Ft. Lbs.
• Valve Timing: VVT

Measurements

• Bed Length: 76.3 inch
• Ground Clearance: 7.1 inch
• Height: 77.7 inch
• Length: 237.4 inch
• Wheel Base: 148.9 inch
• Width: 97 inch
• Width Excluding Mirrors: 79.1 inch

Other

• Front Track: 68.3 inch
• Rear Track: 68.2 inch
• Drive 4 Wheel Drive Type: Pushbutton Hubs
• Drive Type: Four Wheel Drive
• Spare Tank Size: 0 gal
• Tank Size: 34 gal

Performance

• Angle Of Approach: 21.8 deg
• Angle Of Departure: 27 deg
• Turning Circle: 45.1 ft
• Max Payload: 2520 lbs
• Max Towing Capacity: 14650 lbs
• Towing Capacity: 10550 lbs

Seating

• Head Room (Front): 41 inch
• Head Room (Rear): 39.9 inch
• Hip Room (Front): 63.2 inch
• Hip Room (Rear): 63.2 inch
• Leg Room (Front): 41 inch
• Leg Room (Rear): 43.1 inch
• Shoulder Room (Front): 66 inch
• Shoulder Room (Rear): 65.7 inch
• Doors: 4
• Max Seating: 6
• Seating Rows: 2
• Standard Seating: 6
• Passenger Volume: 125.3 cu.ft
• Passenger Volume (3Rd Row): 0 cu.ft

Transmission

• Gears: 6
• Detail: Shiftable Automatic
• Name: 6-Speed Shiftable Automatic
• Type: A
• Type Description: Automatic

Weight

• Curb Weight: 6279 lbs
• Gross Combined Weight Rating: 17000 lbs
• Gross Vehicle Weight Rating: 8800 lbs
• Gross Vehicle Weight Range: 8001-9000
• Tonnage: 3/4

Wheels and Tires

• Rear Tire Type: LT245/70R17E
• Rear Wheel Diameter: 17.0 X 7.5
• Tire Type: LT245/70R17E
• Wheel Diameter: 17.0 X 7.5

Air Conditioning

• Front air conditioning
• Front air conditioning zones - single

Airbags

• Airbag deactivation - occupant sensing passenger
• Front airbags - dual
• Side curtain airbags - rear

Audio System

• Antenna type - mast
• Auxiliary audio input - jack
• In-Dash CD - single disc
• Radio - AM/FM
• Total speakers - 6

Brakes

• ABS - 4-wheel
• Braking assist
• Electronic brakeforce distribution
• Front brake diameter - 14.2
• Front brake type - ventilated disc
• Rear brake diameter - 14.1
• Rear brake type - disc

Comfort Features

• Floor material - rubber/vinyl

Convenience Features

• Ashtray
• Center console - front console with storage
• Cruise control
• Cupholders - rear
• Multi-function remote - keyless entry
• One-touch windows - 2
• Power outlet(s) - 12V
• Power steering
• Steering wheel - tilt
• Storage - under rear seats

Drivetrain

• 4WD selector - manual hi-lo
• 4WD type - part time
• Axle ratio - 3.73

Engine

• Alternator - 160 amps
• Battery - maintenance-free
• Battery rating - 730 CCA
• Emissions - 50 state

Exterior Features

• Door handle color - black
• Front bumper color - silver
• Grille color - chrome
• Mirror color - black
• Pickup bed light
• Rear bumper color - silver
• Tailgate - removable

In Car Entertainment

• Infotainment screen size - 3 in.

Instrumentation

• Gauge - tachometer
• Powertrain hour meter
• Warnings and reminders - low fuel level

Lights

• Headlights - auto on

Mirrors

• Side mirror adjustments - power
• Side mirrors - heated

Safety

• Child safety door locks
• Child seat anchors - LATCH system
• Crumple zones - rear

Seatbelts

• Front seatbelts - 3-point
• Rear seatbelts - 3-point
• Seatbelt force limiters
• Seatbelt pretensioners - front

Seats

• Driver seat manual adjustments
• Front headrests - adjustable
• Front seat type - 40-20-40 split bench
• Passenger seat manual adjustments
• Rear seat folding - folds up
• Rear seat type - bench
• Upholstery - vinyl

Security

• Anti-theft system - vehicle immobilizer
• Power door locks

Suspension

• Front shock type - gas
• Front spring type - coil
• Front stabilizer bar
• Front suspension classification - solid live axle
• Front suspension type - multi-link
• Rear shock type - gas
• Rear spring type - leaf
• Rear suspension classification - solid live axle
• Rear suspension type - multi-leaf

Tires and Rims

• Spare tire mount location - underbody
• Spare tire size - full-size
• Spare wheel type - steel
• Tire Pressure Monitoring System
• Tire type - all season
• Wheel covers - partial
• Wheels - steel

Towing and Hauling

• Auxiliary transmission fluid cooler
• Trailer hitch - Class IV
• Trailer wiring - 7-pin

Windows

• Front wipers - variable intermittent
• Power windows
• Rear privacy glass
